Orion TV1326BW
Orion TV1326BW CRT RGB mod
The Orion TV1326 (sometimes referred to as TV1326A or TV1326B) is a 13" CRT television manufactured in the late 1990s.
View full CRT details and more mod examples →
Contributors
Thank you to everyone who contributed to this guide:
- RRTreasures1 — contributor, Pictures
CRT safety
Caution
You can die doing this! So read carefully! CRT TV is not a toy. Do not open a CRT TV. If you don't have any prior knowledge about handling high voltage devices, this guide is not for you. CRT TV contains high enough voltage (20,000+ V) and current to be deadly, even when it is turned off.
Plan of attack
Manuals and Datasheets
No manuals or datasheets available yet.
Specs
- Manufactured: Thailand (1998)
- Screen Size: 13"

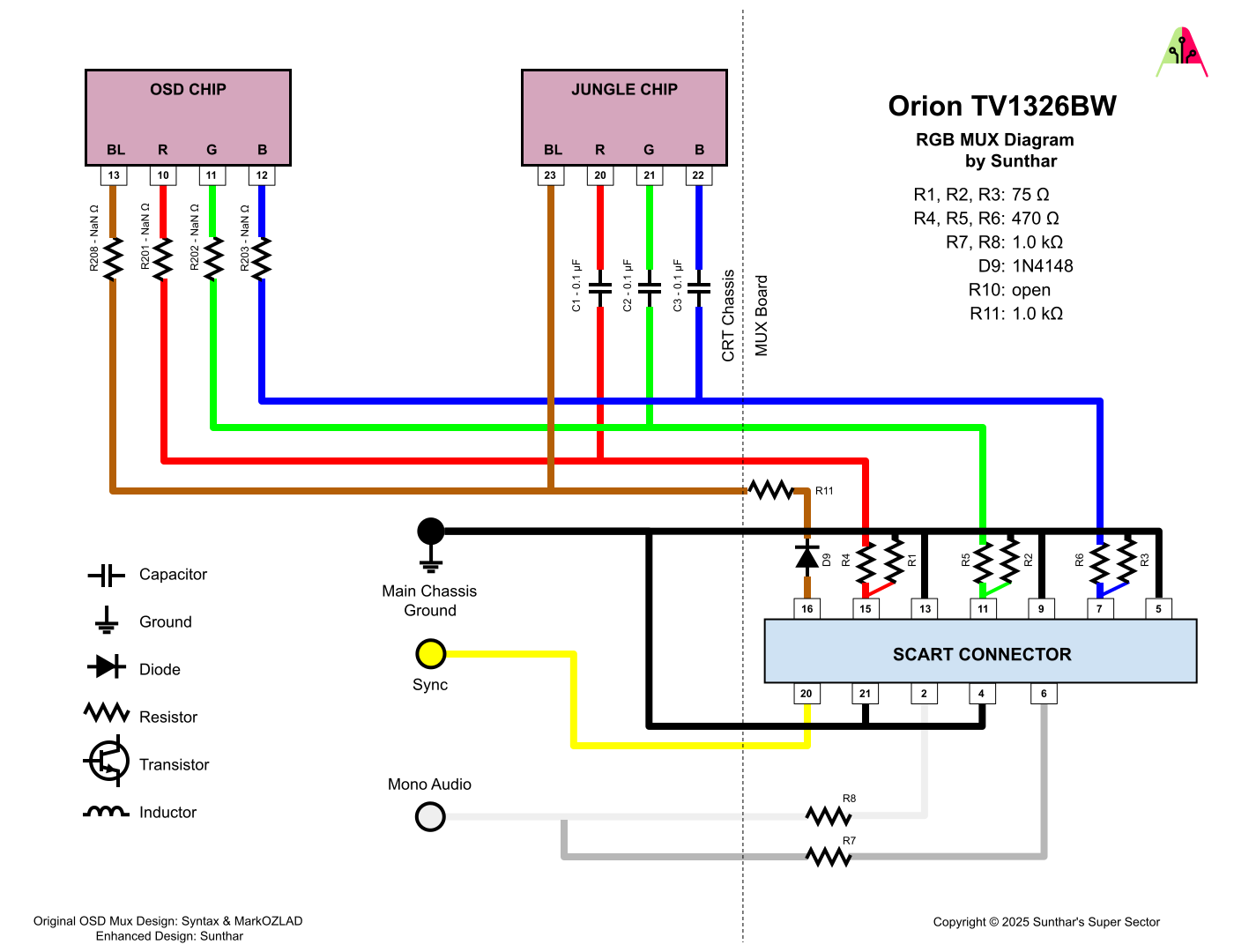

RGB mux diagram
Prepare the mux diagram. If you are building your own circuit, this diagram should help.
Performing the mod
STEP 1: Remove the following components
Remove the three 270Ω, RGB resistors to ground
- R609
- R610
- R611
STEP 2: Connect RGB, Sync, Blanking, Audio and Groud
No pictures available yet
STEP 3: Build your mux board
This mod uses the RGB mux board. This is optional, but will make your mod easier and stable. You can also create the circuit presented in the schematics above without the board. Please also checkout the mux calculator to play with your own values.
| Component | Value |
|---|---|
| RGB inline diode method (chassis) | No |
| 0.1μF caps replaced (chassis) | No |
| RGB termination (R1, R2, R3) | 75Ω |
| RGB inline (R4, R5, R6) | 470Ω |
| Audio LR (R7, R8) | 1kΩ |
| Diode (R9) | 1N4148 |
| Blanking Ground Resistor (R10) | open |
| Blanking Resistor (R11) | 1kΩ |
Compatible mux boards: RGB MUX BOARD KIT 1.4B
Pictures

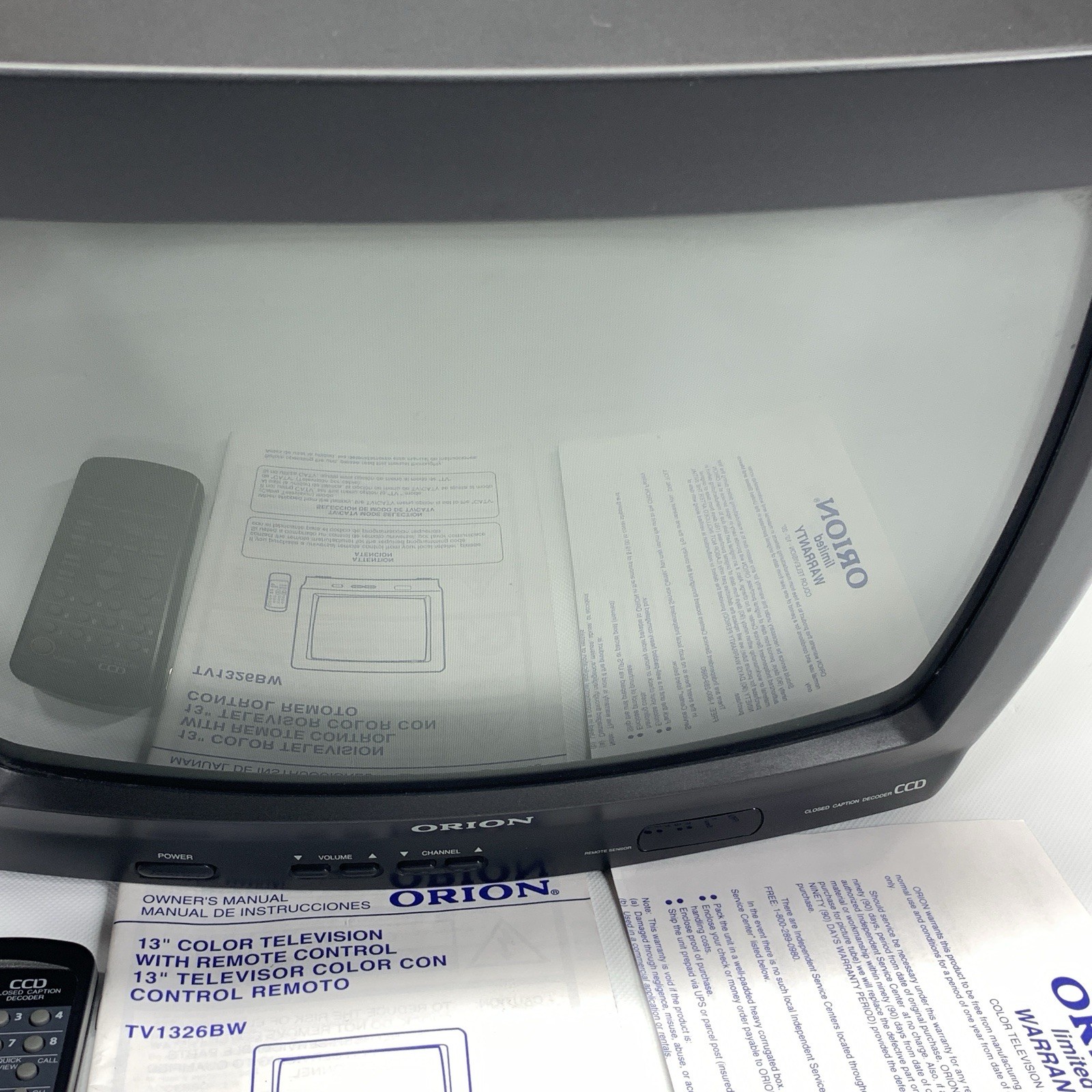

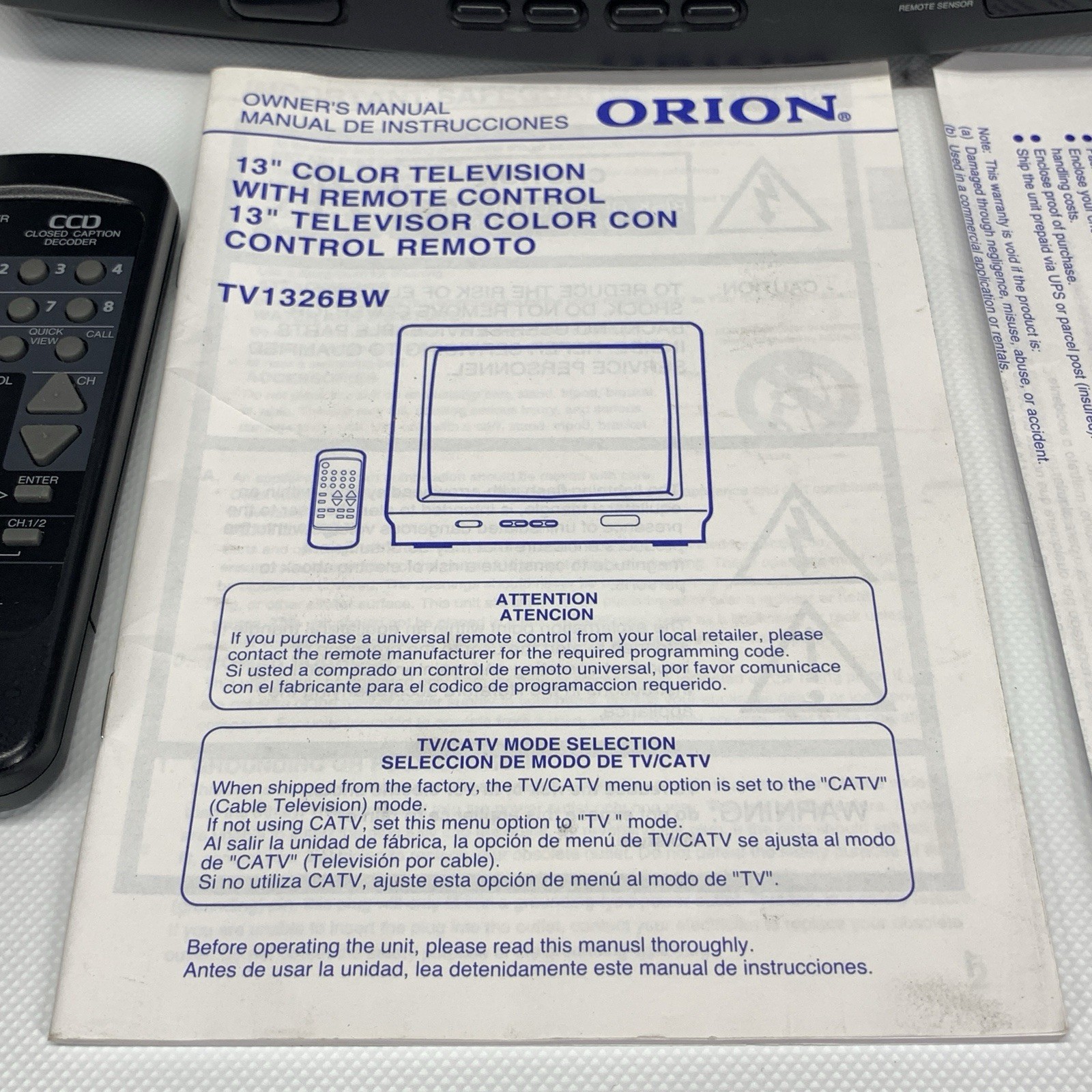

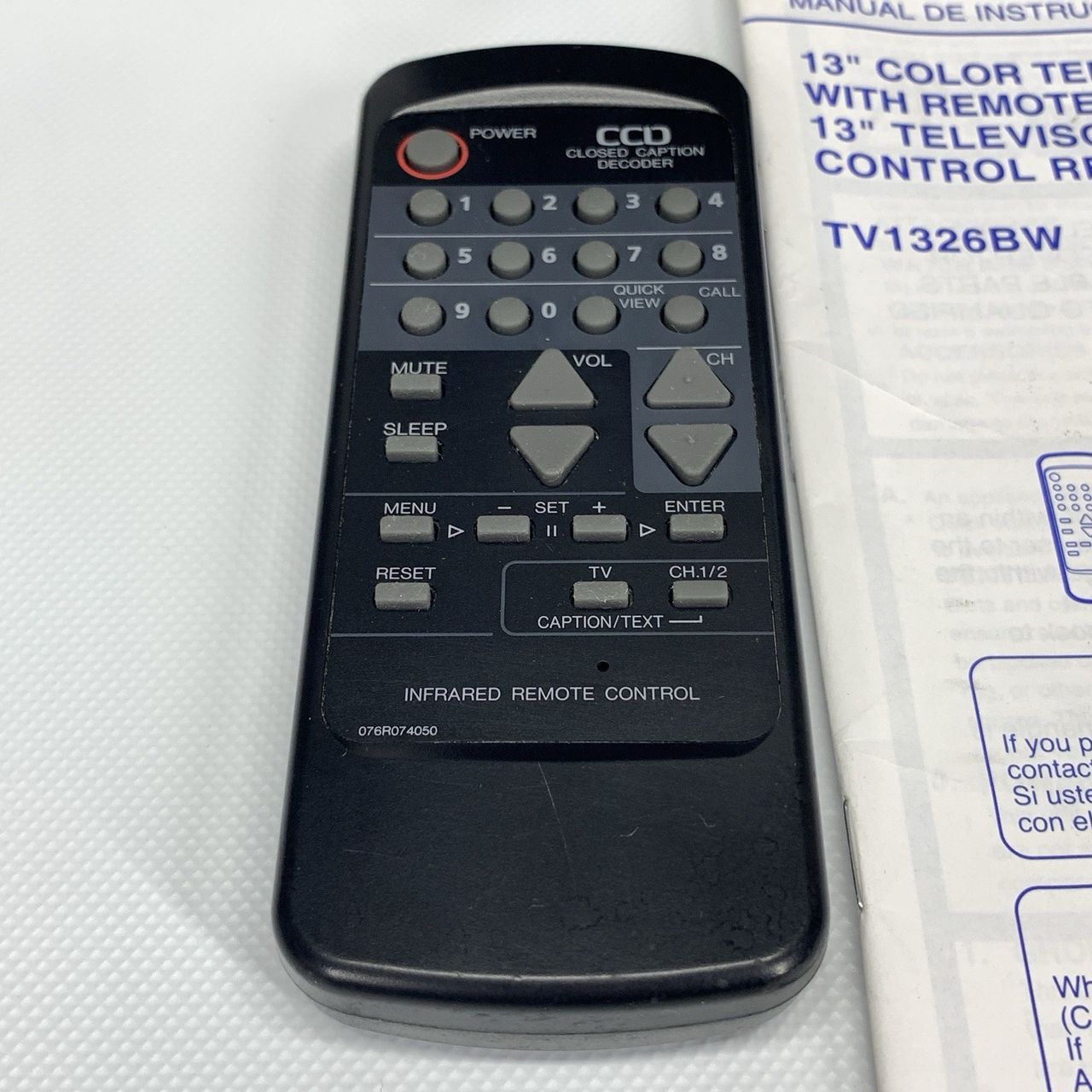

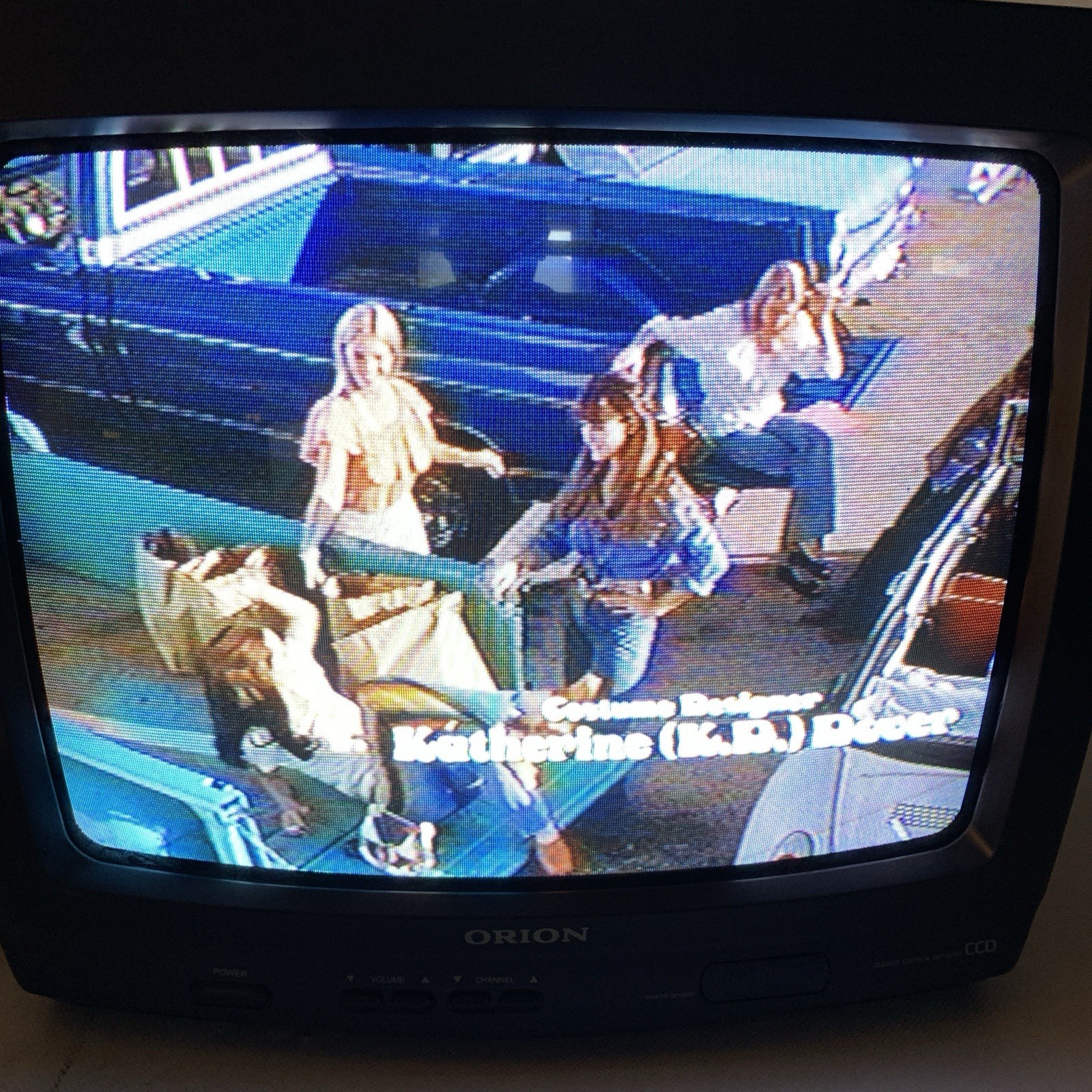

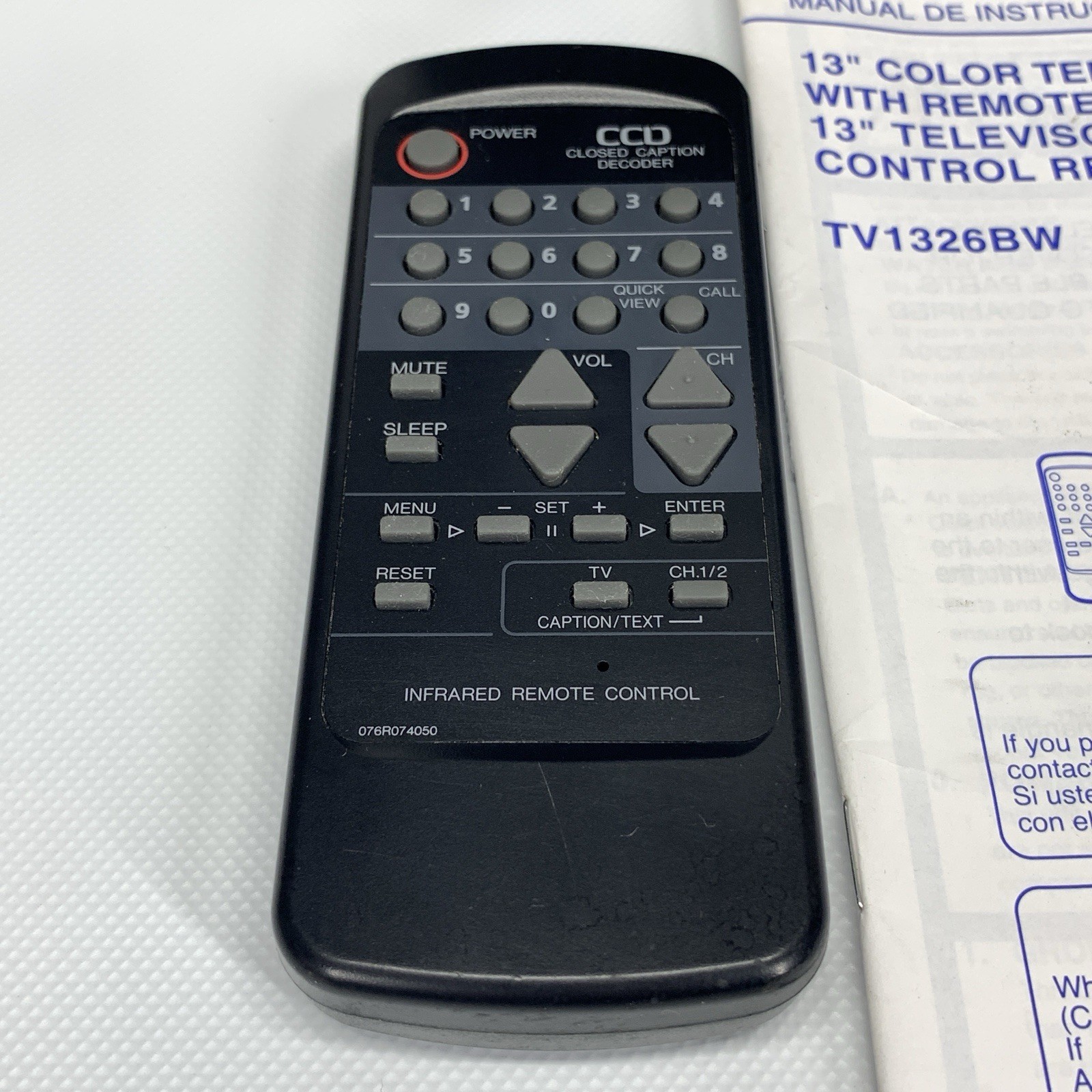

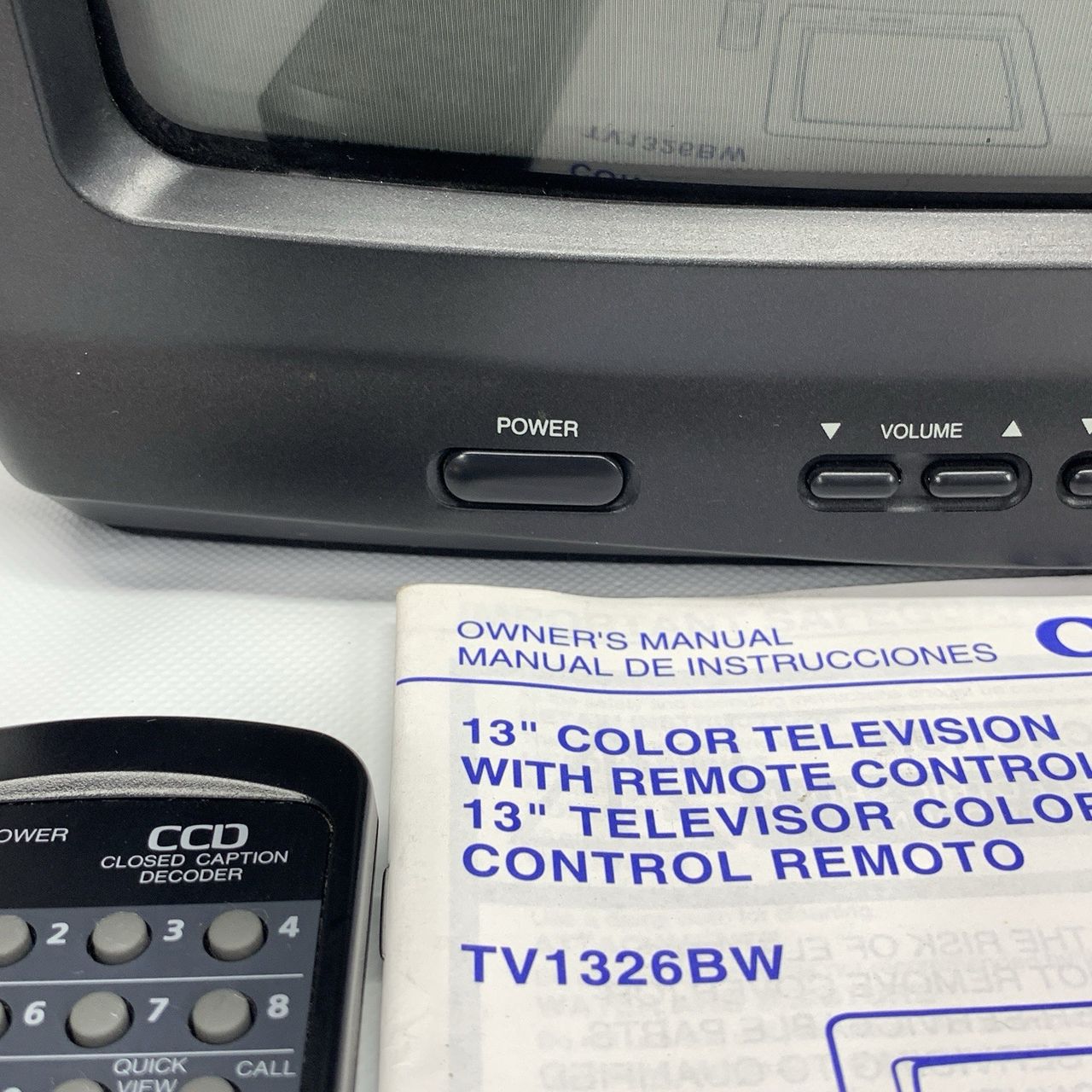

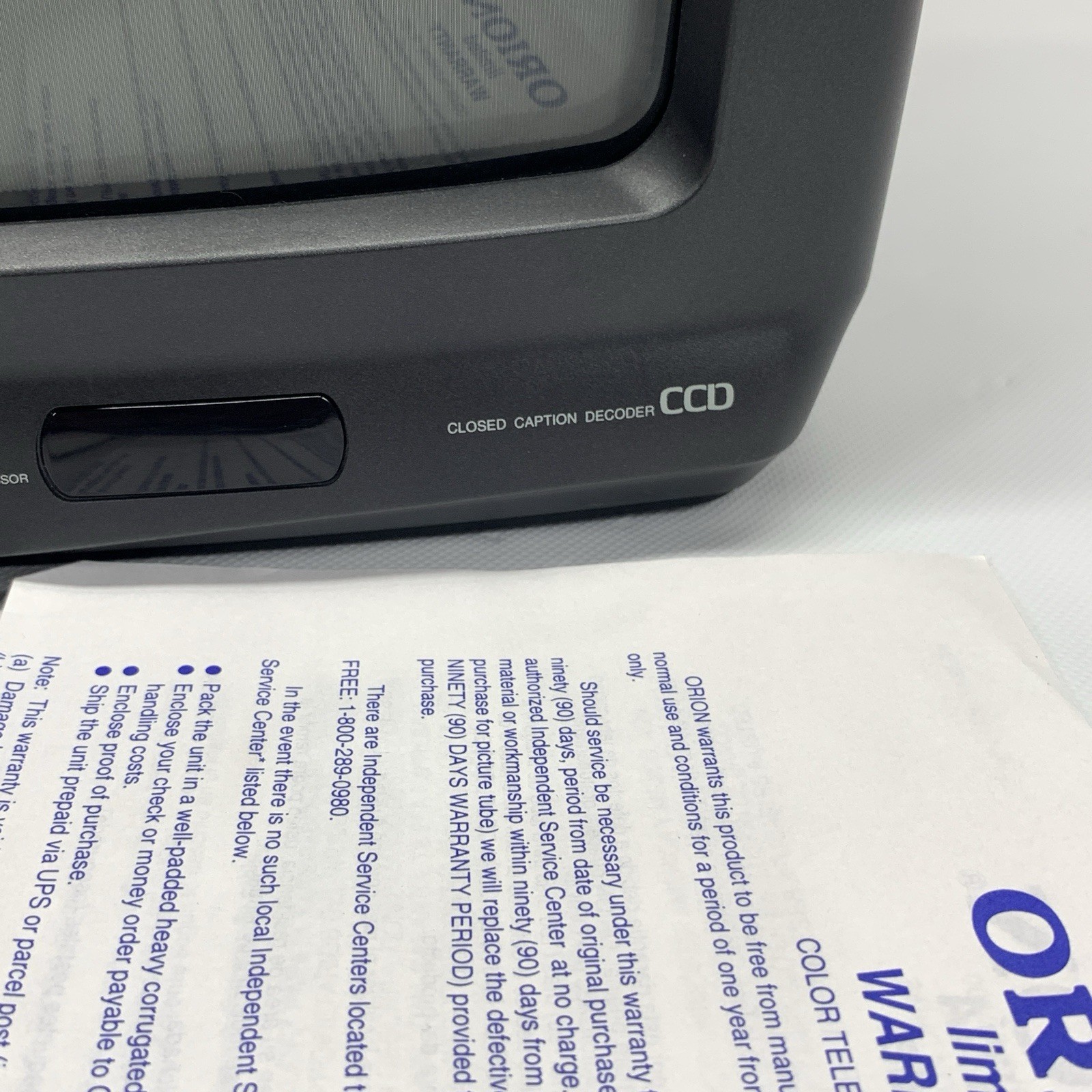

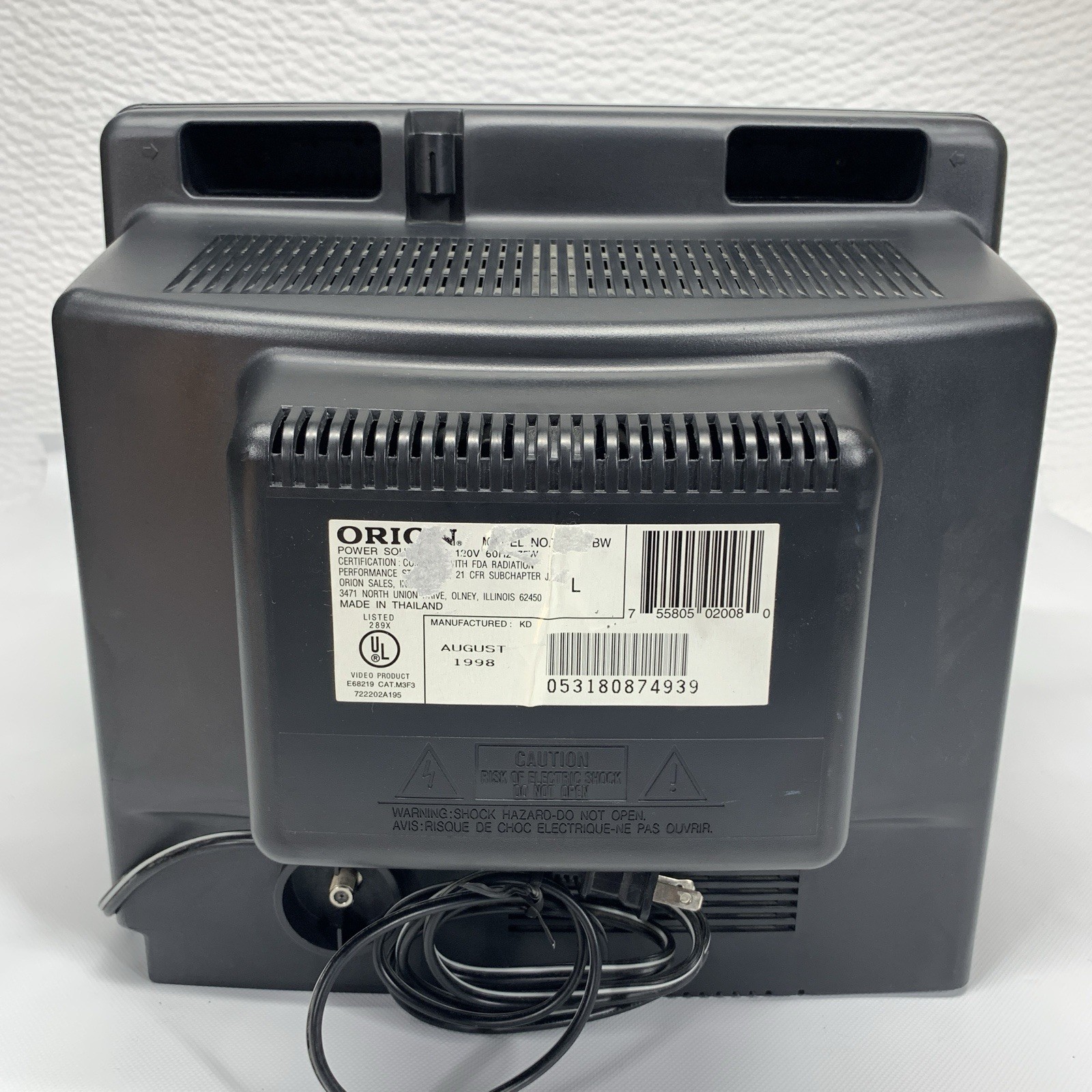

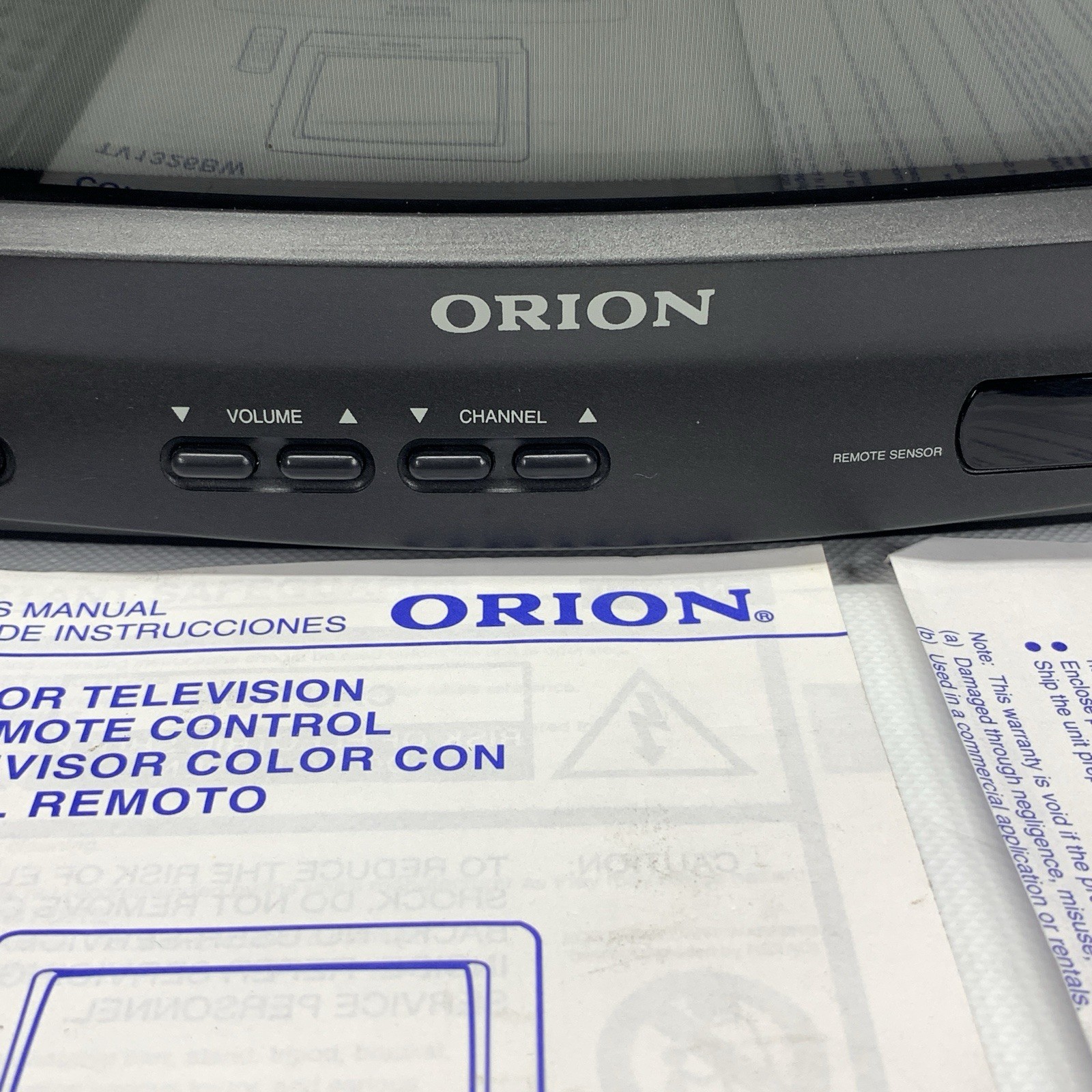

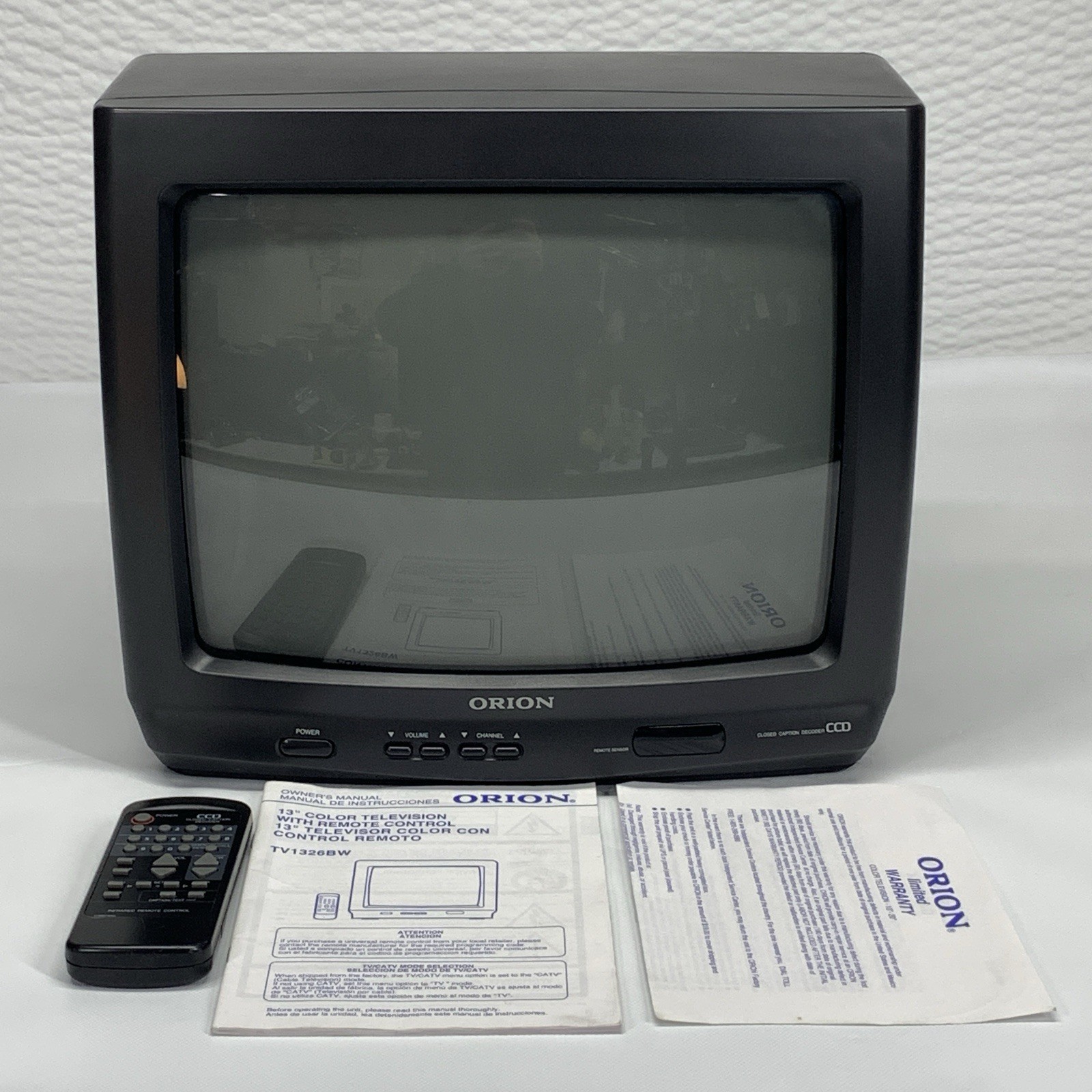

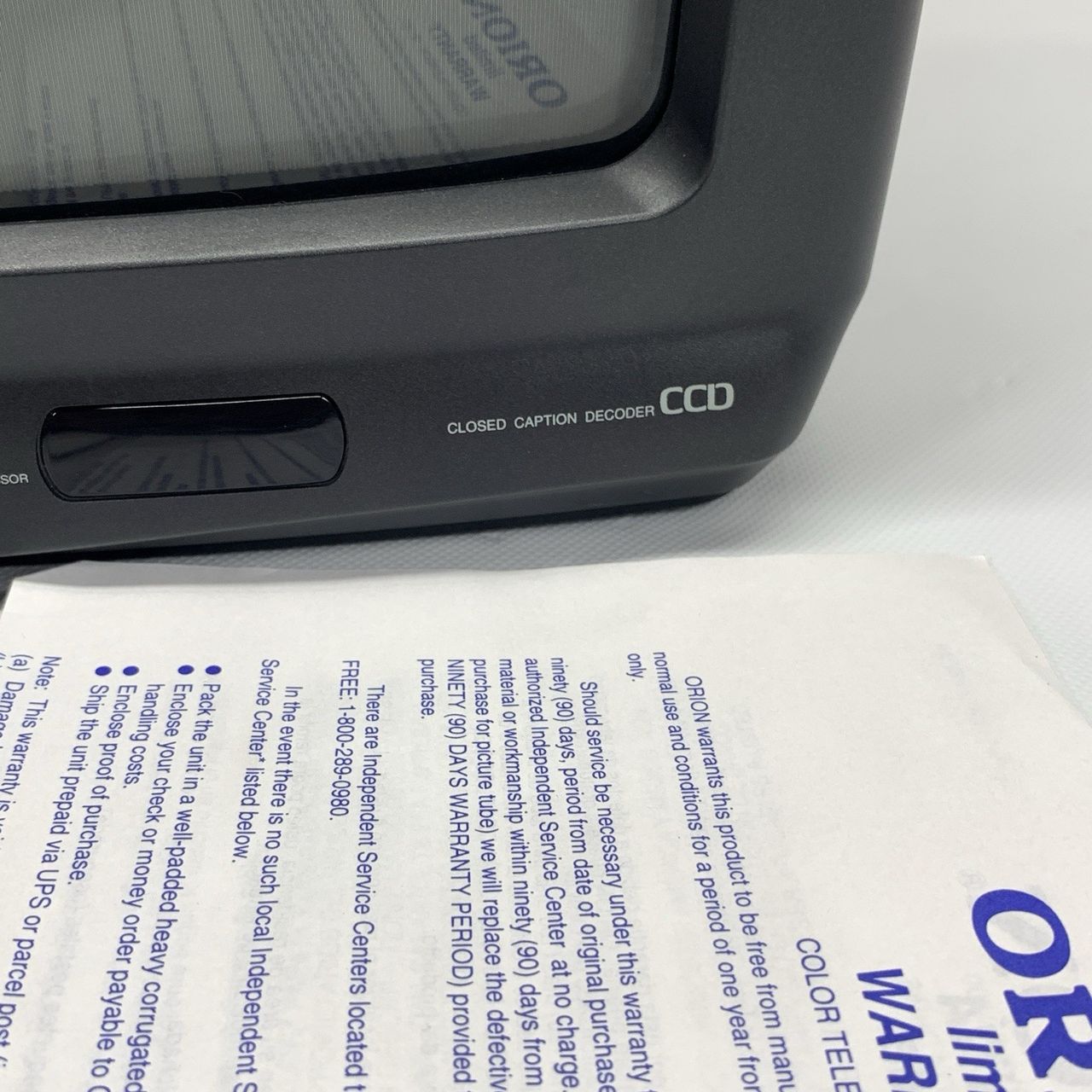

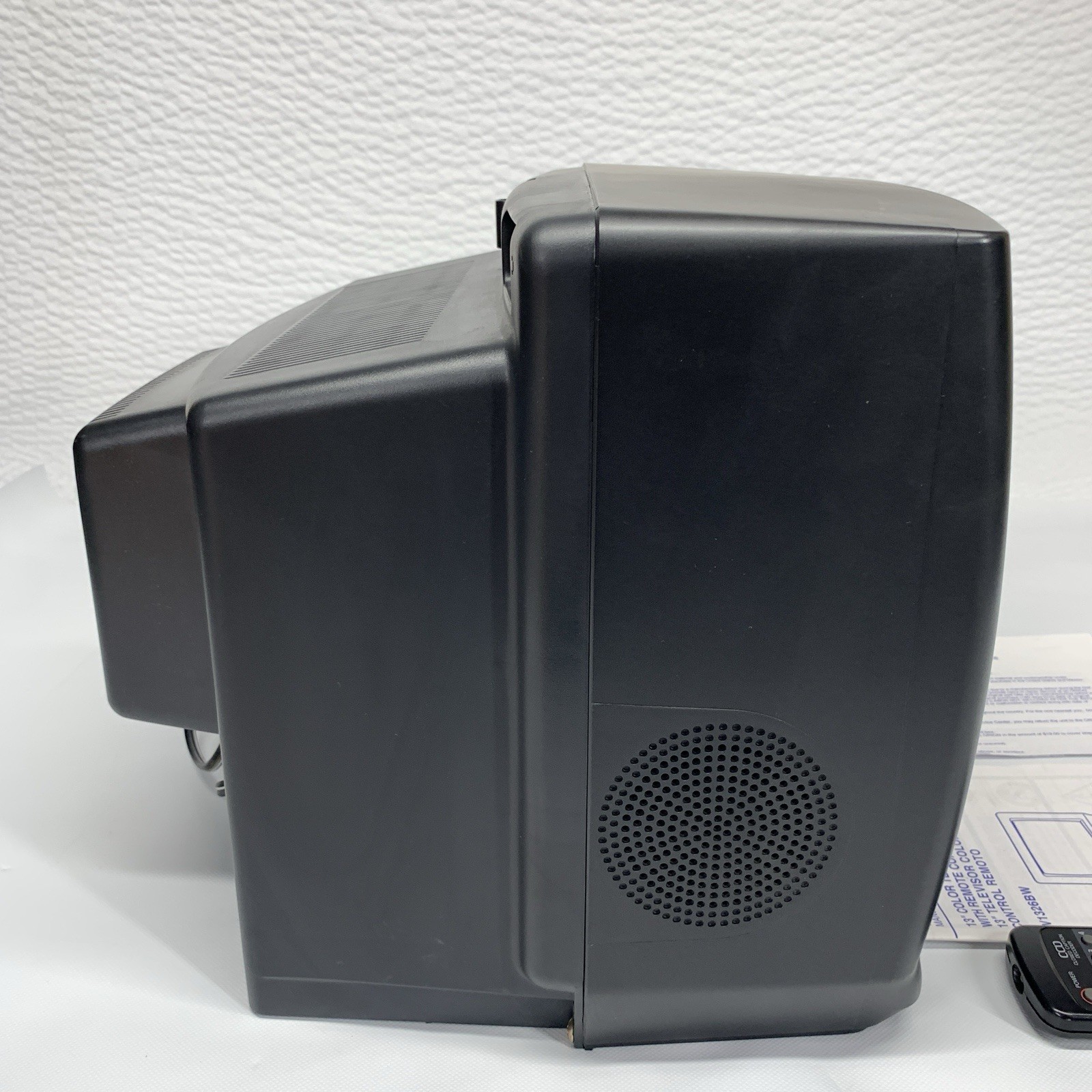

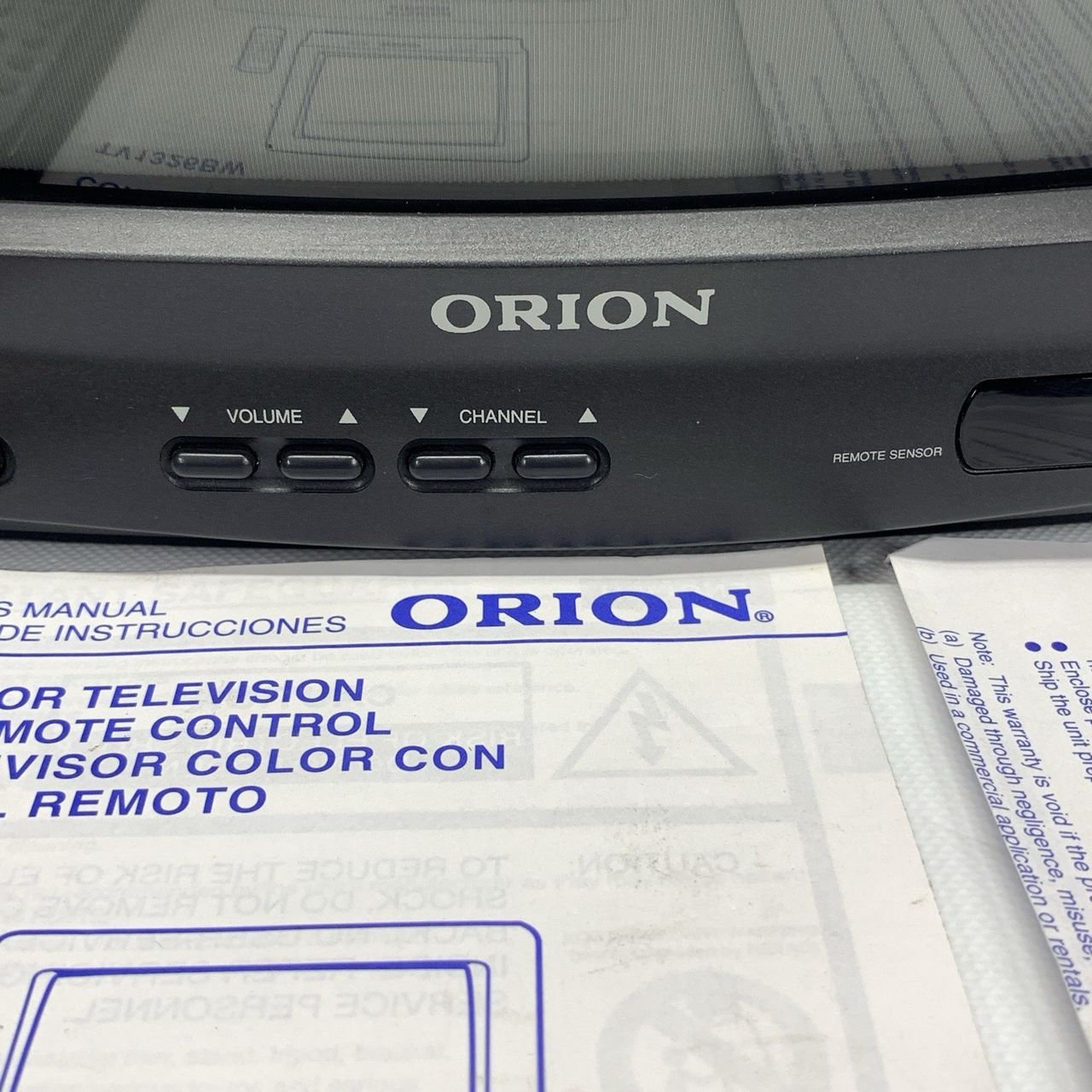

Reference Photos
