JVC AV-31BP6
JVC AV-31BP6 CRT RGB mod
The JVC AV-31BP6 is a 31" CRT tv released around mid 90s. This is a sturdy, and well-designed consumer TV.
View full CRT details and more mod examples →
Contributors
Thank you to everyone who contributed to this guide:
No contributors listed yet.
CRT safety
Caution
You can die doing this! So read carefully! CRT TV is not a toy. Do not open a CRT TV. If you don't have any prior knowledge about handling high voltage devices, this guide is not for you. CRT TV contains high enough voltage (20,000+ V) and current to be deadly, even when it is turned off.
Plan of attack
Manuals and Datasheets
Specs
- Year: 1995
- Chassis: GK
- Jungle Chip: Toshiba TA1201AN
- OSD Chip: MN1874862JKY4

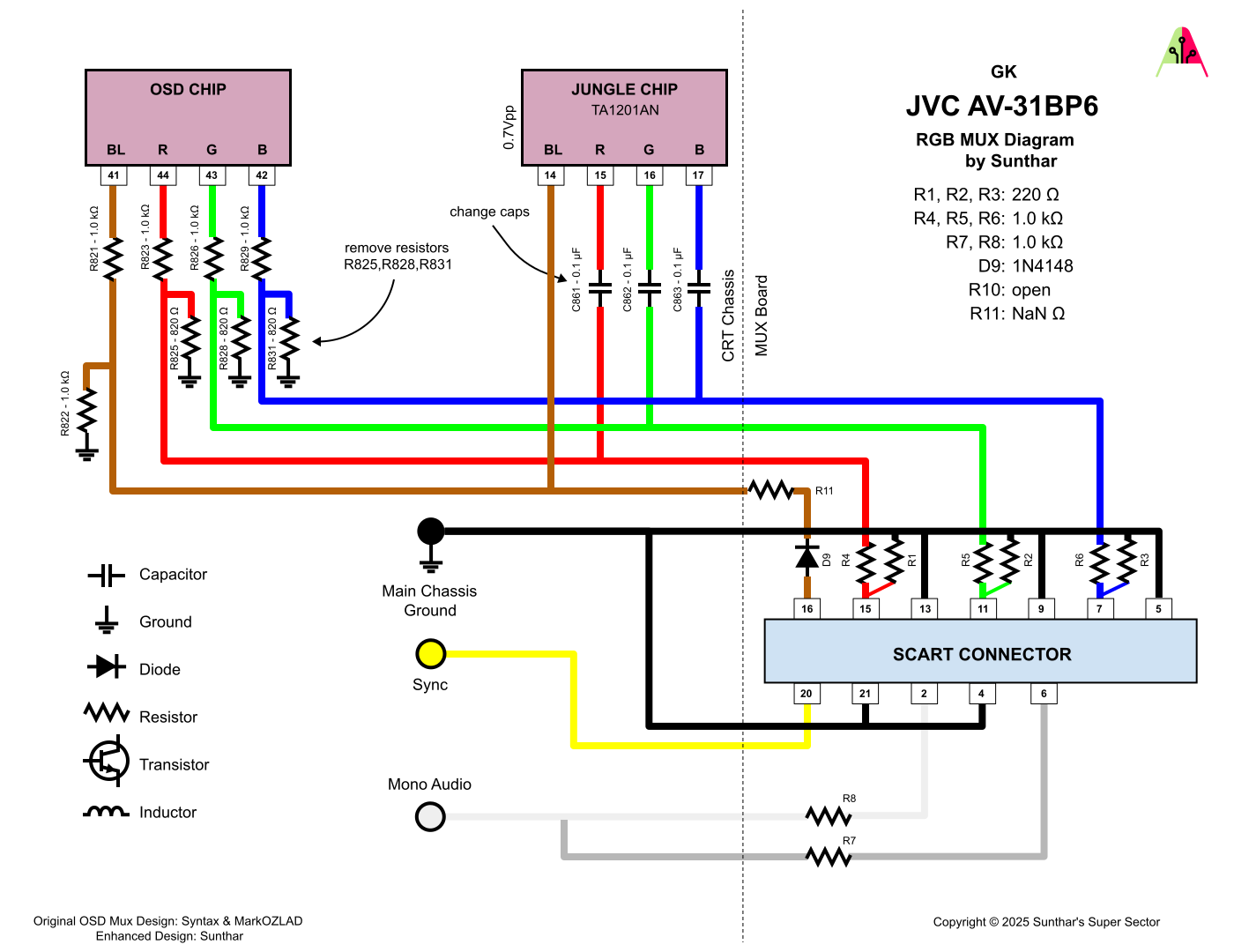

RGB mux diagram
Prepare the mux diagram. If you are building your own circuit, this diagram should help.
Performing the mod
Detailed mod instructions to be added.
This mod uses the RGB mux board. This is optional, but will make your mod easier and stable. You can also create the circuit presented in the schematics above without the board. Please also checkout the mux calculator to play with your own values.
| Component | Value |
|---|---|
| RGB/OSD inline resistor (chassis) | 1kΩ |
| Removed RGB/OSD resistor (chassis) | 820Ω |
| RGB inline diode method (chassis) | No |
| 0.1μF caps replaced (chassis) | Yes |
| RGB termination (R1, R2, R3) | 220Ω |
| RGB inline (R4, R5, R6) | 1kΩ |
| Audio LR (R7, R8) | 1kΩ |
| Diode (R9) | 1N4148 |
| Blanking Ground Resistor (R10) | open |
Compatible mux boards: RGB MUX BOARD KIT 1.4C, RGB MUX BOARD KIT 1.4B
