Samsung TXE1970

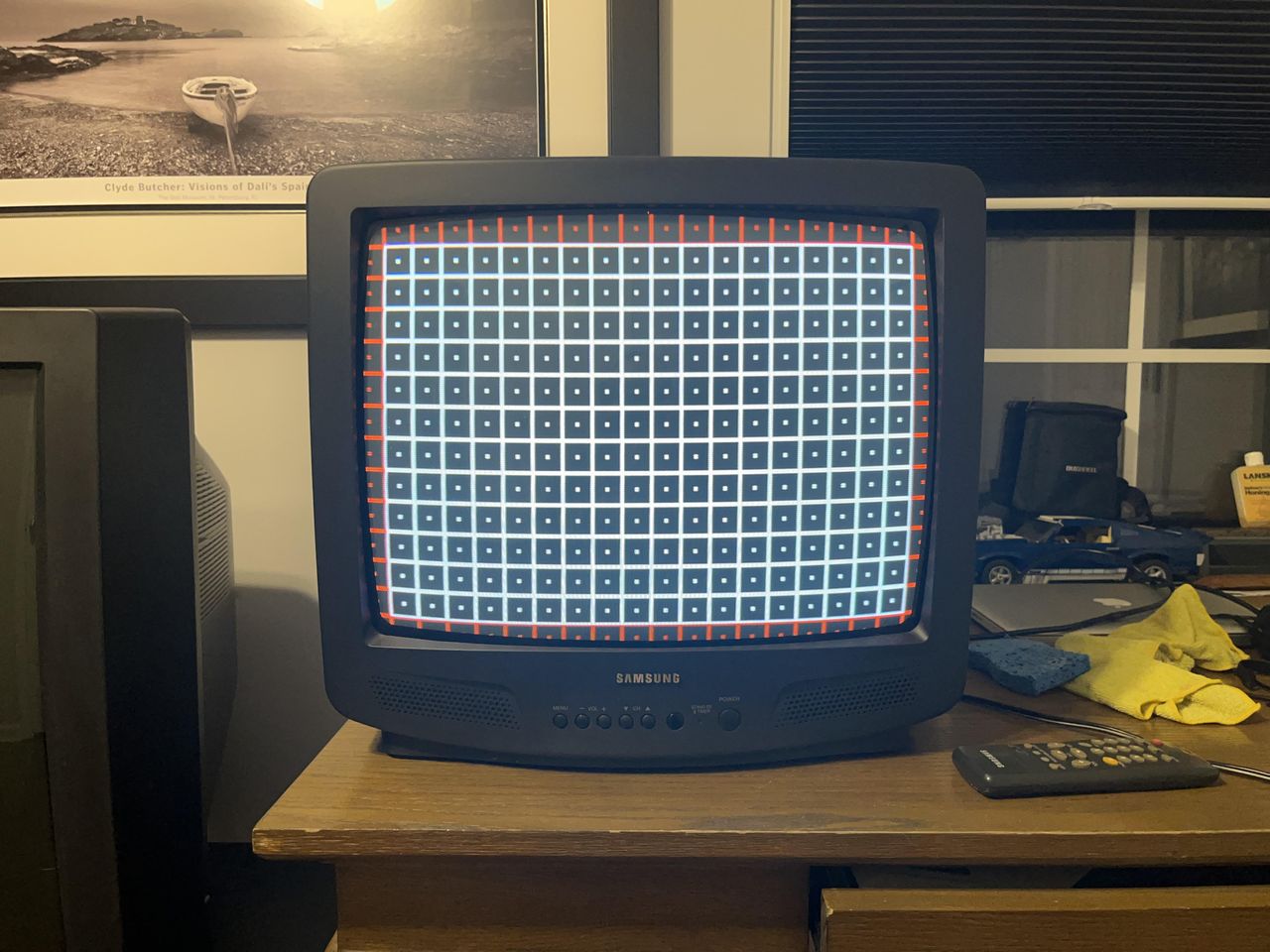

Samsung TXE1970 CRT RGB mod
The Samsung TXE1970 is a 19" color CRT television manufactured in September 1996. It is classified as a budget/basic 19" CRT. Samsung's 19" tubes are known for their brightness and vibrancy, particularly when they have lower usage hours.
This specific version is RGB moddable.
View full CRT details and more mod examples →
Contributors
Thank you to everyone who contributed to this guide:
- John Figueroa — contributor, RGB mod tutorial and pictures
CRT safety
Caution
You can die doing this! So read carefully! CRT TV is not a toy. Do not open a CRT TV. If you don't have any prior knowledge about handling high voltage devices, this guide is not for you. CRT TV contains high enough voltage (20,000+ V) and current to be deadly, even when it is turned off.
Plan of attack
Manuals and Datasheets
- Samsung TXE1970 Service Manual
- Toshiba TA1201AN Datasheet (Jungle) — Available for Pro Users only. See CRT details for access.

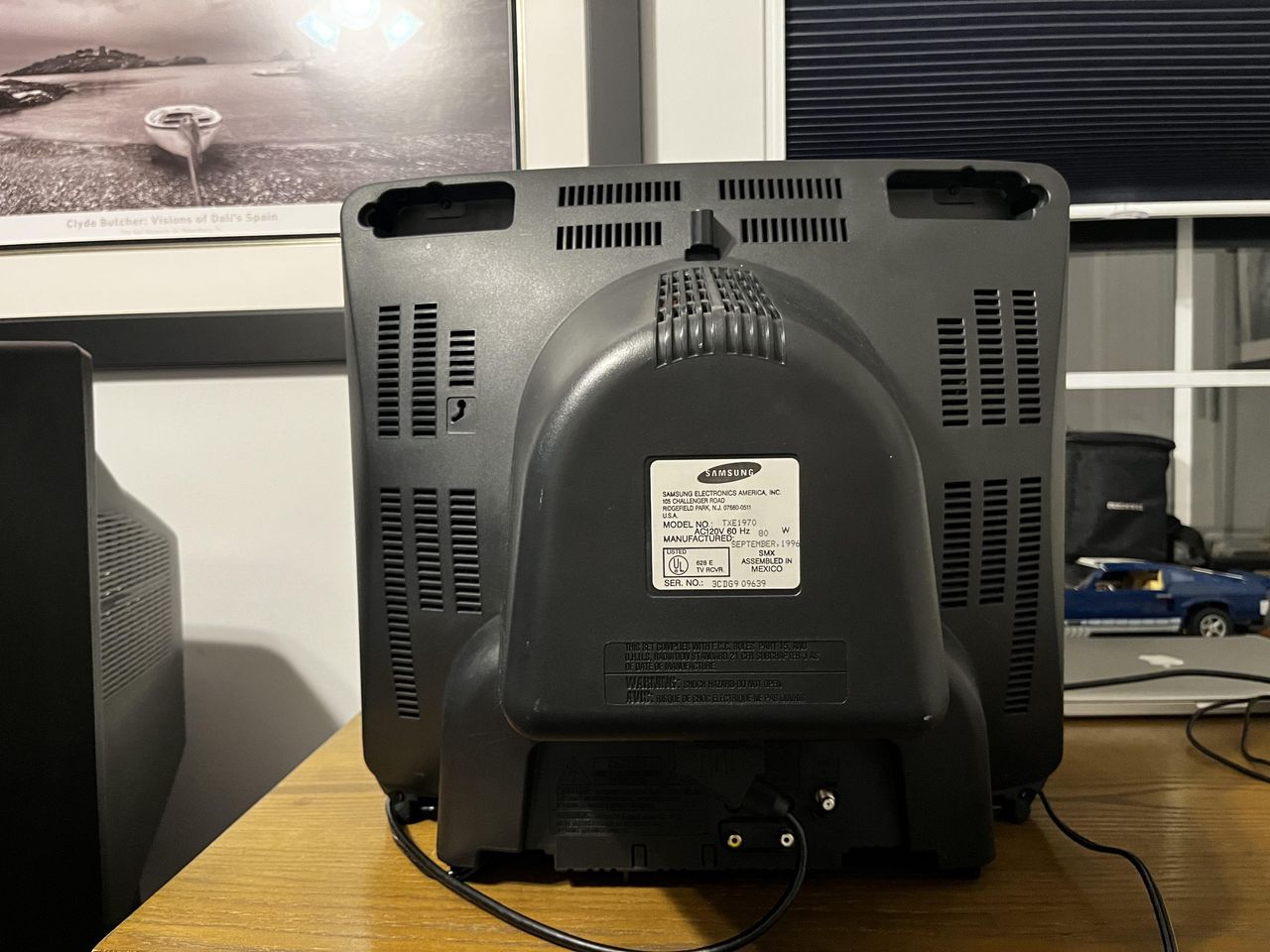

Specs
- Manufactured: Mexico (1996)
- Chassis: K1
- Tube: Samsung A48KRD82X
- Jungle Chip: Toshiba TA1201AN
- OSD Chip: Zilog SZM-284EV
- Screen Size: 19"

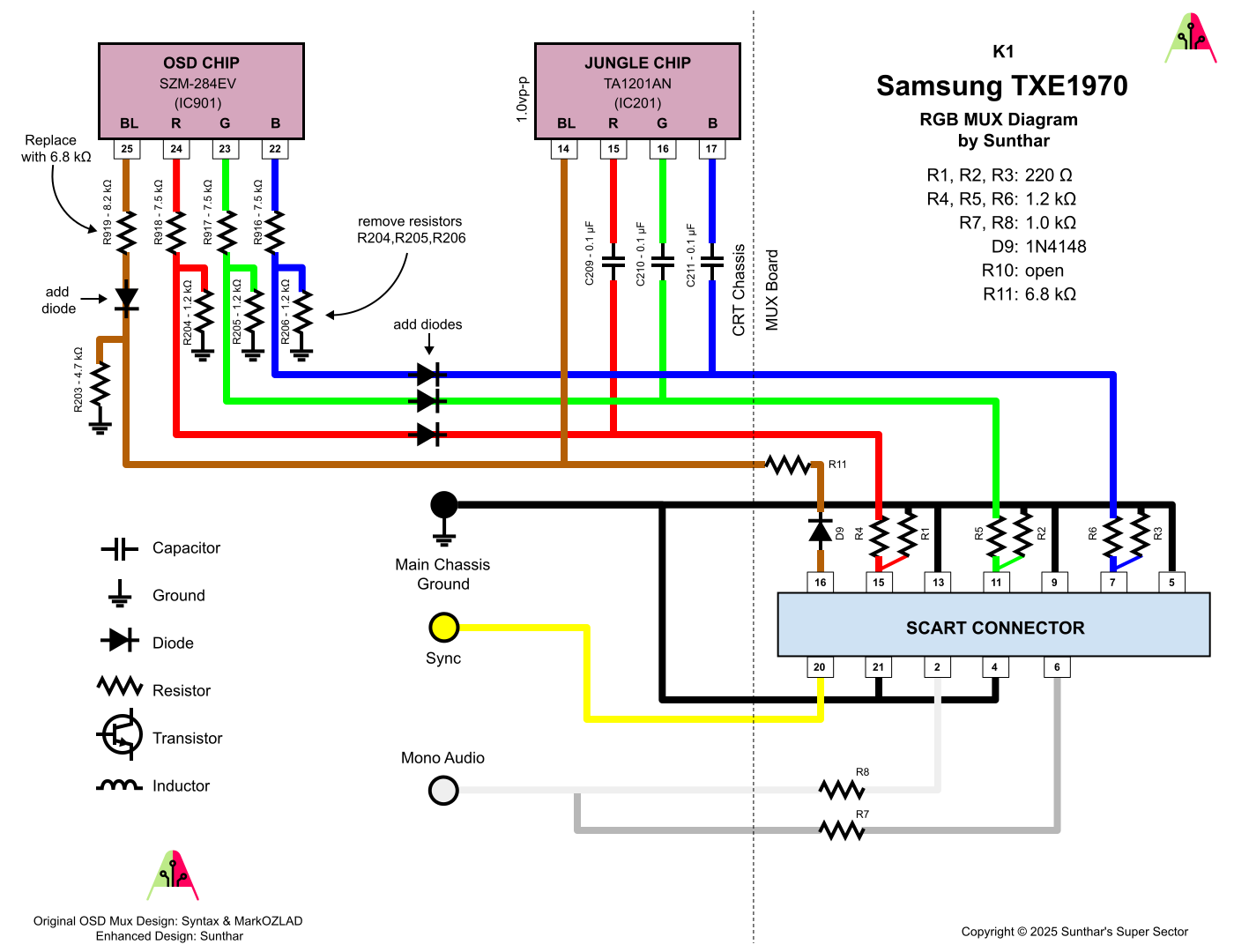

RGB mux diagram
Prepare the mux diagram. If you are building your own circuit, this diagram should help.
Performing the mod

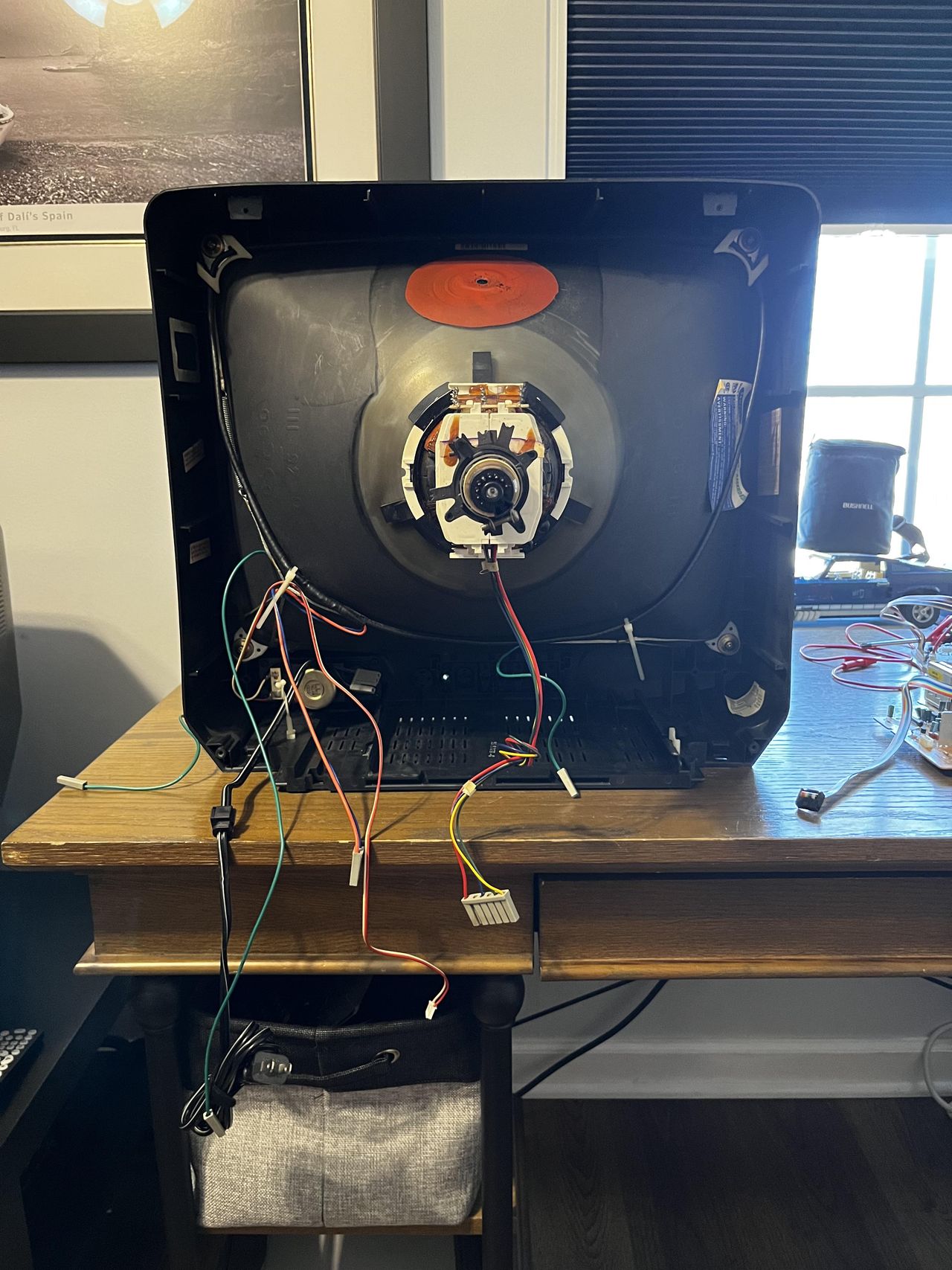

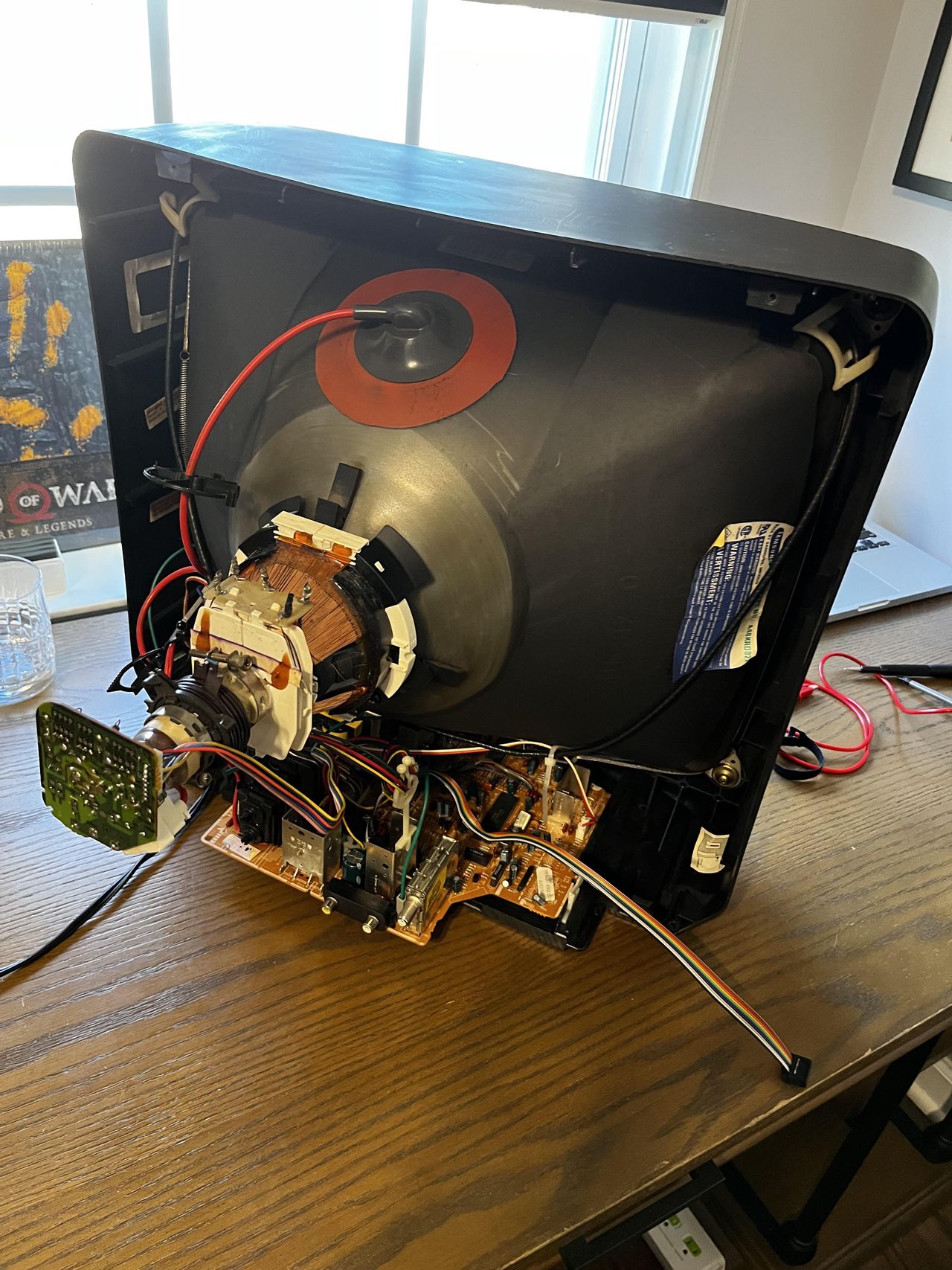

Carefully remove the main chassis and get it ready for the mod.
STEP 1: Remove the following components
Remove the following components. RGB resistors to the ground. Measure twice and mark before you remove.
- R204 (1.2 kΩ)
- R205 (1.2 kΩ)
- R206 (1.2 kΩ)
STEP 2: Connect RGBs, Blanking and Audio
Replace 8.2kohm R919 with 6.8kohm resistor
RGB and Blanking
Audio, Ground and Sync Wires
STEP 3: Cut trace to disable AV detection
This disables the detection whether AV is plugged in or not
STEP 4: Build your mux board
This mod uses the RGB mux board. This is optional, but will make your mod easier and stable. You can also create the circuit presented in the schematics above without the board. Please also checkout the mux calculator to play with your own values.
| Component | Value |
|---|---|
| RGB/OSD inline resistor (chassis) | 7.5kΩ |
| Removed RGB/OSD resistor (chassis) | 1.2kΩ |
| RGB inline diode method (chassis) | Yes |
| 0.1μF caps replaced (chassis) | No |
| RGB termination (R1, R2, R3) | 220Ω |
| RGB inline (R4, R5, R6) | 1.2kΩ |
| Audio LR (R7, R8) | 1kΩ |
| Diode (R9) | 1N4148 |
| Blanking Ground Resistor (R10) | open |
| Blanking Resistor (R11) | 6.8kΩ |
Compatible mux boards:
STEP 5: Attach the female SCART connector to TV
Creating a SCART cutout and mounting it is an art. I have a dedicated section for it.
How to create and mount a SCART female plug?
STEP 6: Profit
