# Sony (AA-2W) KV-36XBR250 CRT RGB mod

This tutorial covers the RGB mod for Sony KV-36XBR250.

View full CRT details and more mod examples →open in new window

# Contributors

Thank you to everyone who contributed to this guide:

• Eli Krauseopen in new window — contributor, CRT specs from CRT Database.

# CRT safety

READ THIS BEFORE CONTINUING

# Plan of attack

READ THIS TO PREPARE

# Manuals and Datasheets

• Sony KV-36XBR250 Service Manual — Available for Pro Users only. See CRT detailsopen in new window for access.
• CXP858-002S Datasheet (OSD)open in new window

# Specs

• Year: 1999
• Format: NTSC
• Chassis: AA-2W
• Tube: Sony FD Trinitron A90LPW80X
• Jungle Chip: Sony CXA2131S
• OSD Chip: CXP858-002S
• Screen Size: 36"
• Inputs: Composite, S-Video, RF, Component YPbPr

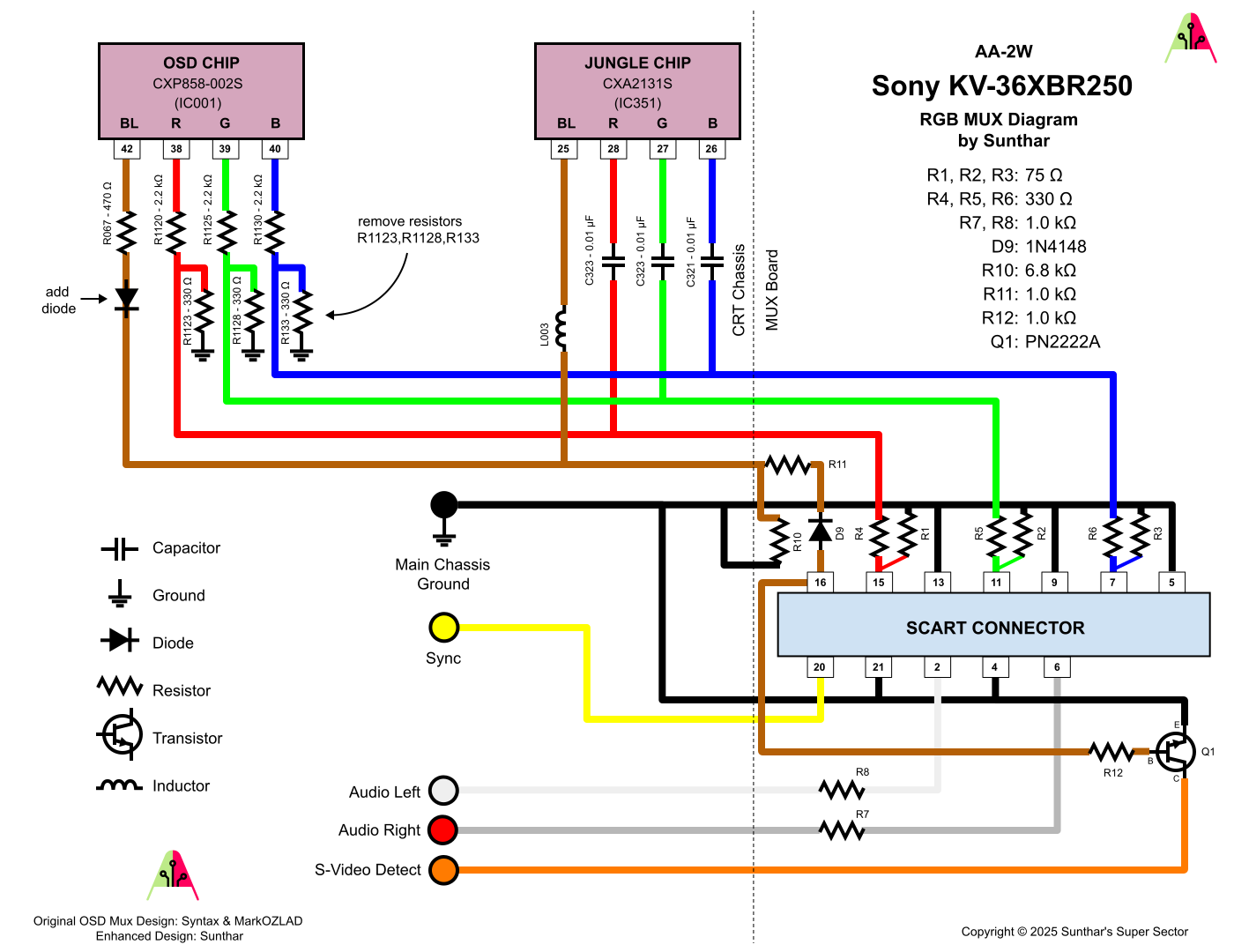

# RGB mux diagram

Prepare the mux diagram. If you are building your own circuit, this diagram should help.

# Performing the mod

# Step 1: Remove the following components

Remove R1123, R1128 and R133

# Step 2: Add a diode to blanking

Blanking diode added. Helps reduce interference. This mod was performed without shielded cables internally and absolutely no interference was noticed.

# Step 3: Connect RGB and blanking wires

# Step 4: Connect audio and sync wires

# Step 5: Build your mux circuit

This mod uses the RGB mux board. This is optional, but will make your mod easier and stable. You can also create the circuit presented in the schematics above without the board. Please also checkout the mux calculatoropen in new window to play with your own values.

Compatible mux boards:

• RGB MUX BOARD KIT 1.4Copen in new window
• RGB MUX BOARD KIT 1.4Bopen in new window

Buy your RGB mux board kit
